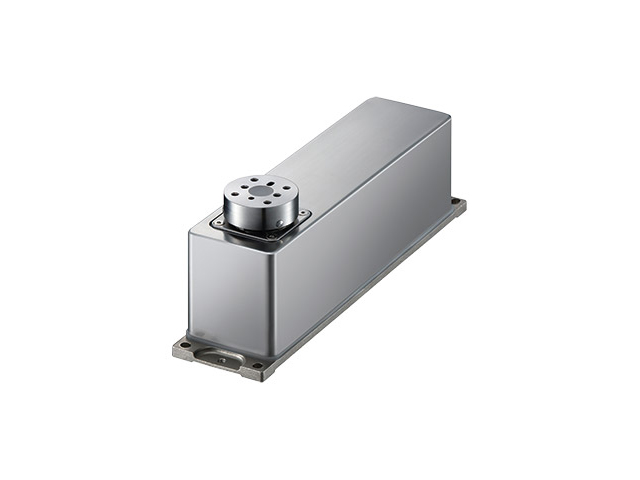

UF系列【嵌入计量单元】- UF series【Built-in weighing unit】

特长

•  [UF-300]为新开发传感器，宽25mm超纤细身材（UF-620的50%以下）
• 适用IP65规格（UF-300，UF-1200除外）
• 1mg的高精度嵌入计量单元（UF-620、UF-300）
• 5%量程的载荷下稳定时间只需0.4秒、高速应答能力：称重更新速率Max100次/秒
• 标配高泛用性的通信设备 (RS232c, RS-485)

1.实现空间的节约

业界屈指的宽度薄度

可在生产线中有限的空间里配置多数的感应器并提高其生产性能

宽：

• UF-300  25mm
• UF-620  85mm
• UF-1200 95mm
• UF-3200 95mm

2.通过配置而实现空间的节约

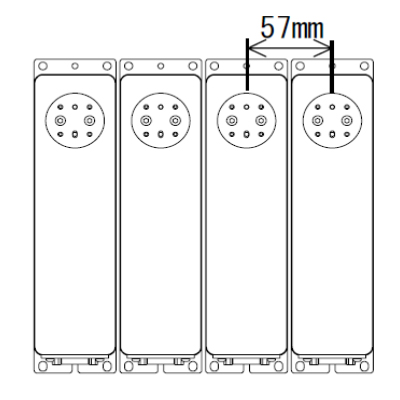

A.　并列　57㎜间距	B.　交叉配置　29㎜间距

Features

•  [UF-300] is a newly developed sensor with a 25mm wide ultra-slim body  (less than 50% of the UF-620)
•  IP65 specifications (except UF-300, UF-1200)
•  Realized a high-accuracy weighing with min. resolution (1mg). (UF-300, UF-620))
•  Stable time under 5% range load is only 0.4 seconds, high-speed response capability: weighing update rate Max100 times/second
•  Standard with highly versatile communication equipment (RS232c, RS-485)

1. Save space

The industry's top class width thinness.

Multiple sensors can be configured in a limited space in the production line to improve its production performance.

Width:

• UF-300  25mm
• UF-620  85mm
• UF-1200 95mm
• UF-3200 95mm

2. Save space by configuration

A. Parallel pitch=57㎜	B. Cross configuration pitch=29mm
